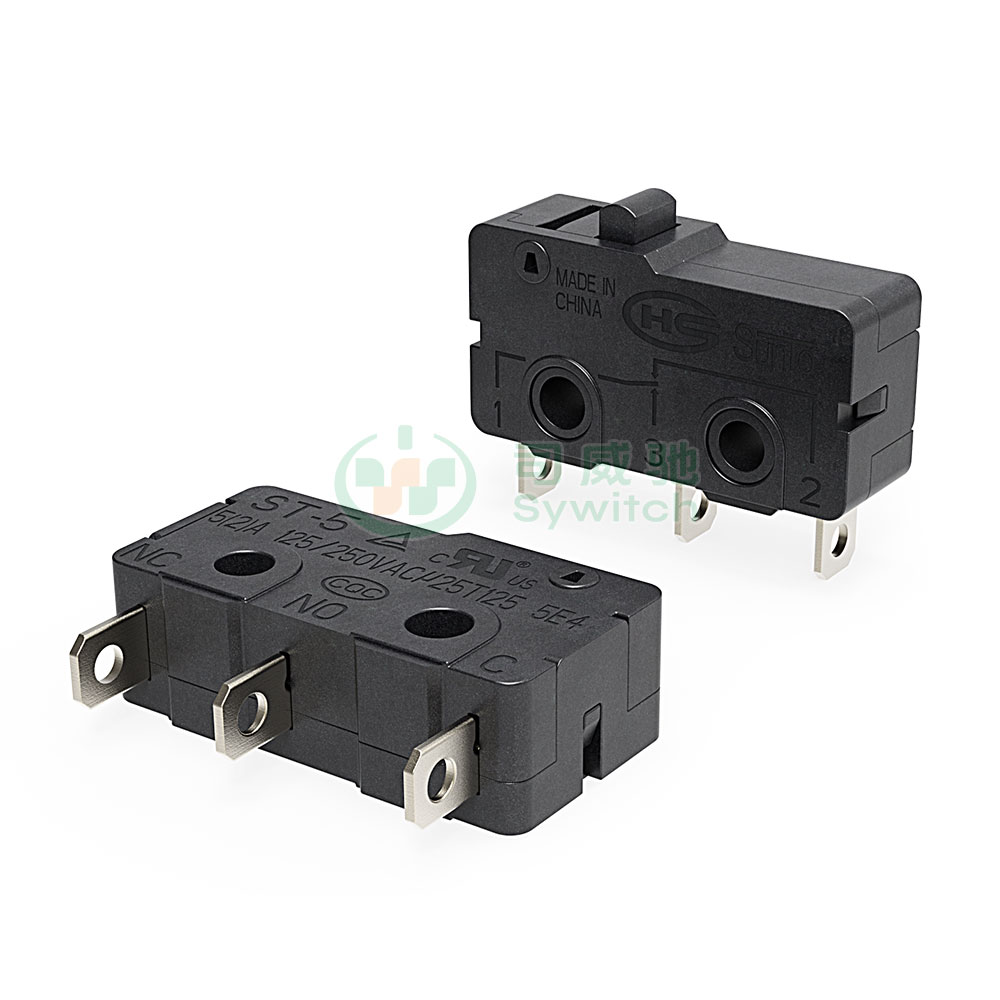

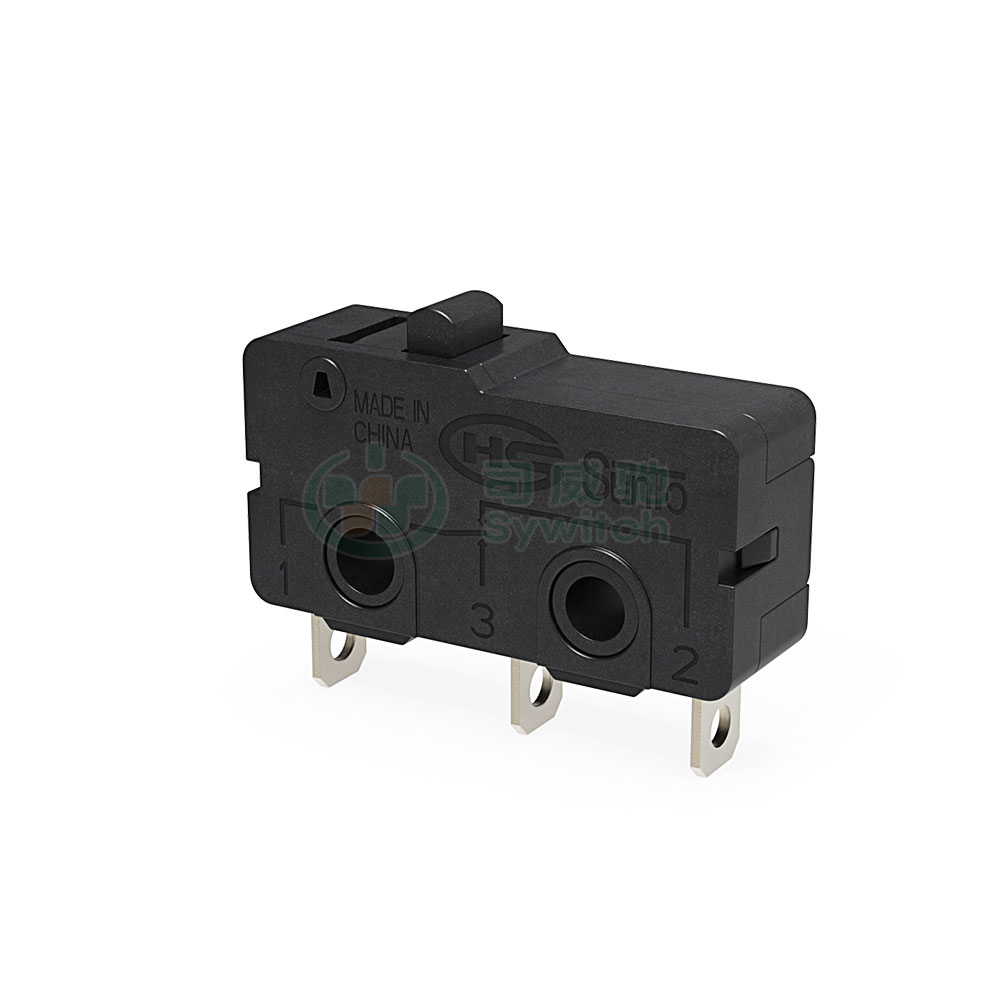

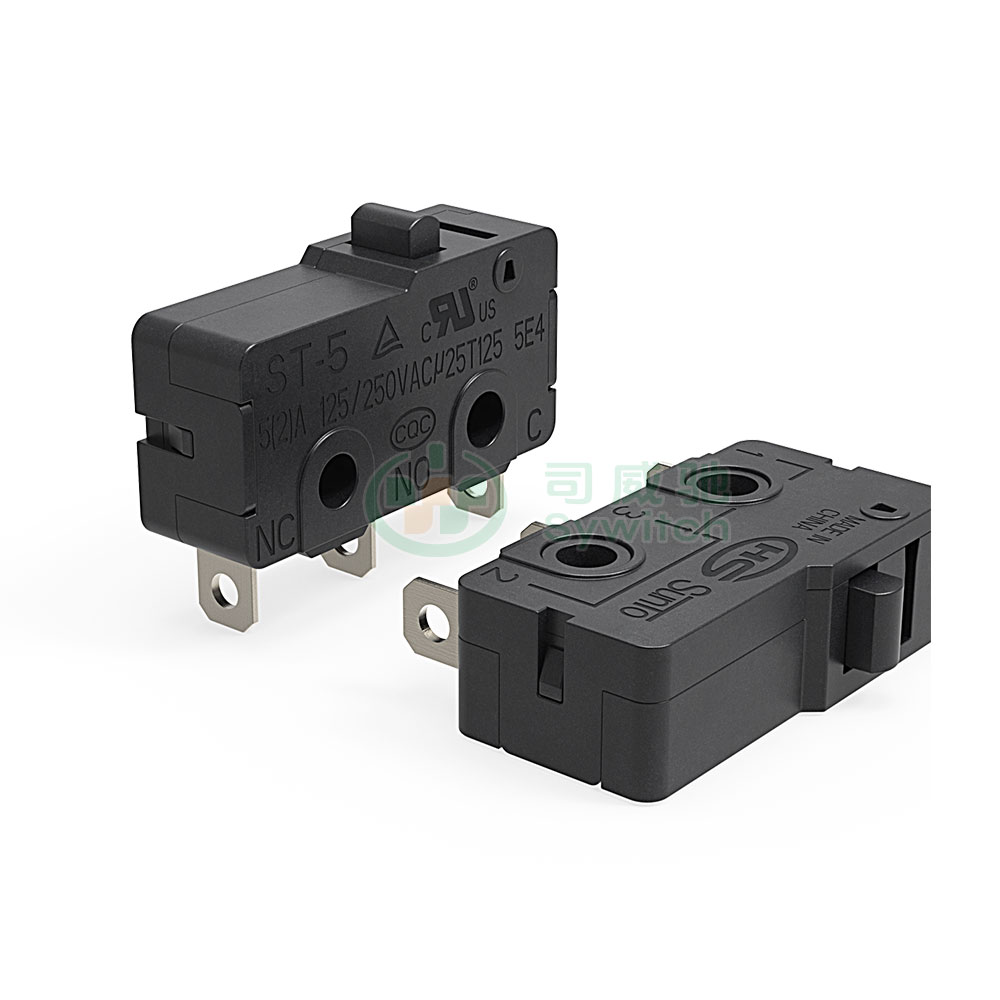

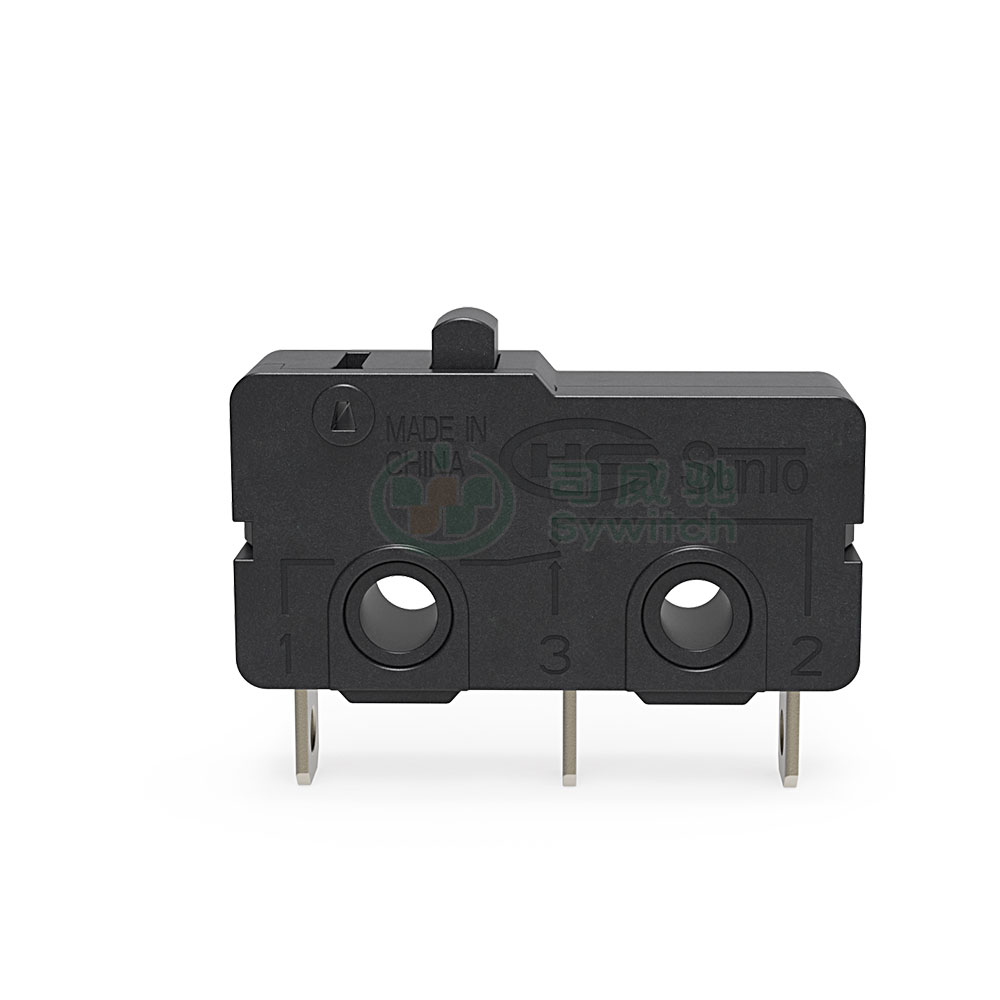

Overall Dimensions And Action Characteristics
Installation Precautions
During installation, use M3 screws and match them with flat washers and spring washers for tightening.
When installing, please use a tightening torque of 0.23~0.26N.m to ensure the installation is secure and does not damage the structural strength of the microswitch.
According to EN61058-1, the minimum insulation protection thickness of this microswitch should be 1.1mm.
The minimum spatial distance between the terminal and the mounting plate should be 1.9mm.
During actual assembly, if the insulation distance of the components cannot meet the above requirements, please select a microswitch with an insulation shield or use an insulation barrier to ensure the insulation distance.
